Main Features
One HDMI output, supporting up to 4K@60Hz
One HDMI input, supporting up to 4K@30Hz
Supports EDID management
Two USB-A 3.0 ports, supporting one camera for video conferencing
Supports HDMI capturing as Camera function
Supports ultrasonic and Bluetooth near-field discovery technology
Two Gigabit Ethernet ports, one of which supports Power over Ethernet (802.11at compliant, supporting up to 15W)
3.5mm headphone audio input
3.5mm headphone unbalanced stereo analog audio output
One RS232 port, supporting both receiving commands to control the device and sending commands to control other devices
Wireless input up to 4K@30Hz video resolution
Supports native wireless mirroring protocols such as AirPlay, Chromecast, and Miracast for seamless presentations
Supports screen sharing function with the included Dongle (including the latest 4K dongle and previous 1080p dongle)
A continuously updated WirelessMedia PC client (currently supported up to Windows 11 and macOS 15) supports screen mirroring function and wireless transmission of camera video data to a computer
Powerful WebGUI backend management
Supports Telnet control of the device

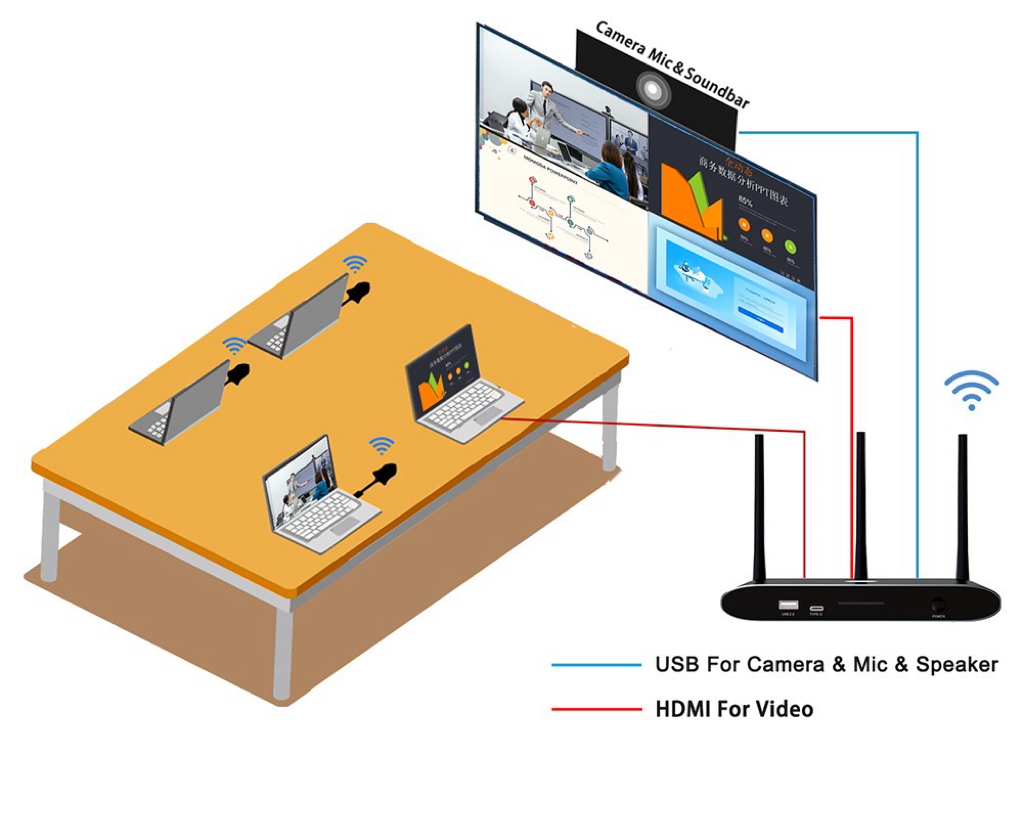

System Diagram
Specification
| HDMI output | 1x HDMI 19-pin female connector |
| HDMI Output Resolution | 3840x2160@60Hz,3840x2160@30Hz, 1920x1080@60Hz, 1280x720@60Hz |
| HDMI Format Compliance | HDMI1.4/HDMI2.0 |
| Video Capacity: | 1080P @ ≤60Hz Airplay for IOS devices |
| 4K @ ≤30Hz "WirelessMedia" app | |
| 4K @ ≤30Hz for HDMI show-me button | |
| 4K @ ≤30Hz for USB-C show-me button | |
| 4K @ ≤30Hz for HDMI input | |
| HDCP | HDCP1.4/HDCP2.2 |
| HDMI Input | 1x HDMI 19-pin female connector |
| HDMI Input Format Compliance | HDCP1.4 |
| HDMI Intput Resolution | 3840x2160@30Hz,31920x1080@60Hz, 1280x720@60Hz |
| Analog Audio Output | 1x 3.5mm PC audio female jack |
| Analog Audio Input | 1x 3.5mm PC audio female jack |
| LAN port | RJ45 x2：1000Mbps x2 |
| USB interface | USB3.0：Type A x2; USB2.0: Type A x1, Type C x1 |
| Audio Input | AirPlay, Miracast, Chromecast, Windows/MAC App, WMH, WMC, USB(MIC) |
| Audio output | Jack, HDMI, Jack + HDMI, USB(Speaker) |
| Control connectors | 3.5mm Phoenix terminal/ RS232 interface |
| Number of window simultaneous on screen | ≤ 4+12（4 main windows+12 thumbnail windows） |
| Number of simultaneous connections | ≤ 16 |
| Video Playback Frame Rate | 20-60 FPS |
| Latency | ＜100ms，Min 20ms |
| WIFI Data rate | Up to 1200Mbps |
| Wireless transmission protocol | WIFI IEEE 802.11 a/b/g/n/ac/ax，Bluetooth：5.2 |
| Found nearby devices | Support |
| Frequency band | 2.4 GHz & 5 GHz |
| WIFI Antenna | MIMO 2x2, MIMO 1x1 |
