WU-10 Wireless BYOM System

WU-10 is our brand new wireless conference product that's designed to meet today's hybrid workforce' requirement with not only local presentation but also collaborate with remote participants, it enable people to connect the room camera, mic, speaker and display with their own laptops wirelessly, so people can take advantage of room A/V system to collaborate with both in-room and remote meeting participants, without cable limitation and hassle.


Description




WU-10 Conference Key Advantages


  • Pure wireless presentation experience, bring your own device, no cable messy

  • Wireless connection between your laptop and room USB peripherals like camera, mic, speakers for easy video conference

  • Wireless content input up to 1080P, HDMI 2.0 output

  • Support native wireless mirroring protocols like Airplay, Miracast, Chromecast

  • Support plug-n-play HDMI/TYPE-C/U disk dongles for wireless connection

  • Support windows APP for wireless connection

  • Support 4 split screen view

  • Support reverse control of laptop from touch screen

  • Best-in-class data security with high standard encryption

  • PoE supported, saving PSU when connecting with PoE ethernet switch

  • Moderation mode support preview function

  • Support whiteboard, annotation

  • Dual network to separate guest's and employee's access

  • Central management platform available

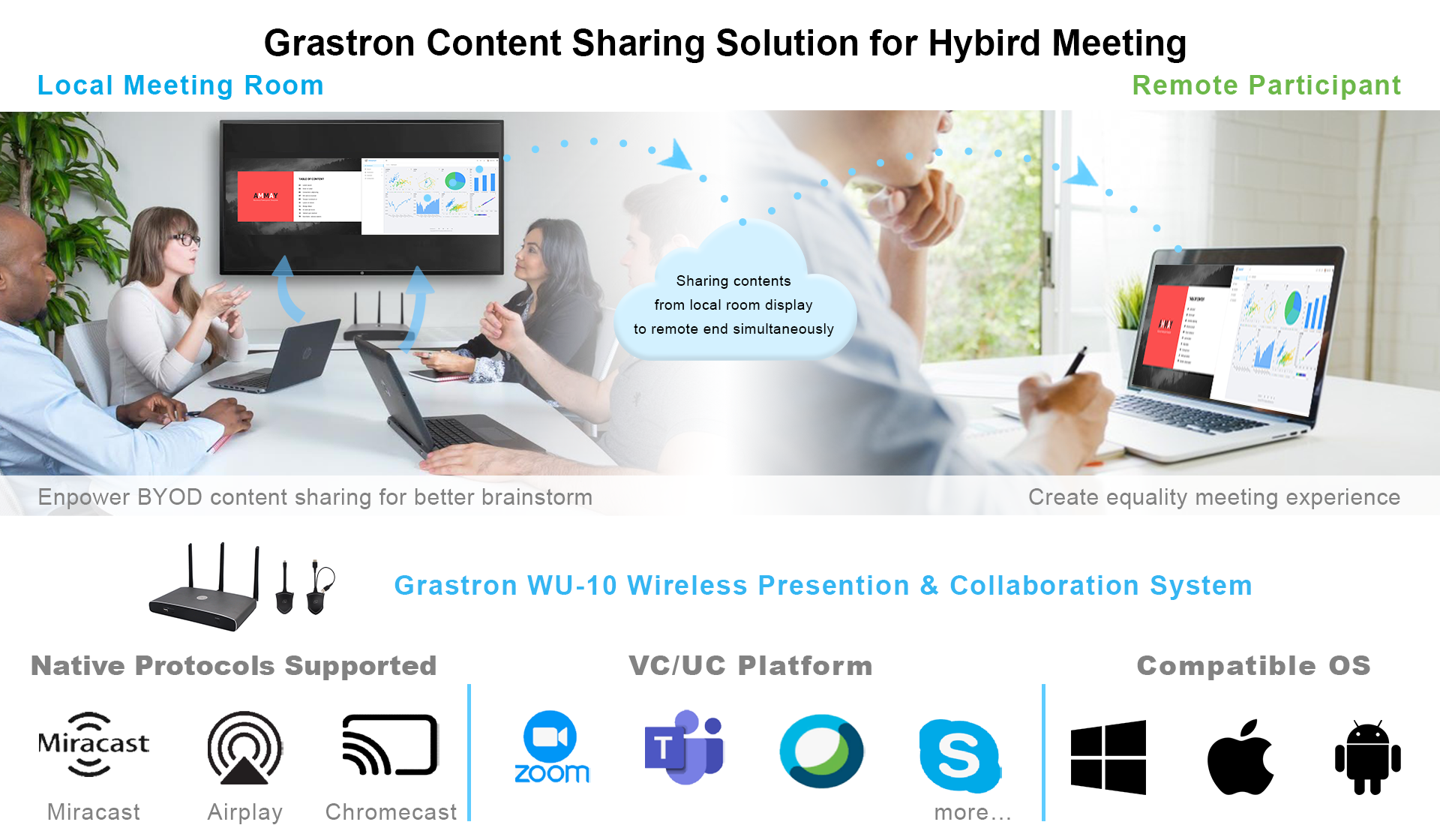

System Diagram








Specification

HDMI output

1x HDMI 19-pin   female connector

Video Output   Resolution

3840x2160@60Hz,3840x2160@30Hz,   1920x1080@60Hz, 1280x720@60Hz

Format   Compliance

HDMI1.4/HDMI2.0

Video Capacity:

1080P @ ≤60Hz Airplay for IOS devices

1080P @ ≤60Hz "WirelessMedia" app

1080P @ ≤60Hz for HDMI  show-me button

1080P @ ≤60Hz for USB-C show-me button

1080P @ ≤30Hz for USB show-me button

HDCP

HDCP1.4/HDCP2.2

Analog Audio   Output

1x 3.5mm PC   audio female jack

LAN port

RJ45 x2:1000Mbps x1,100Mbps x1

USB interface

USB3.0 x3,   Type-C(USB3.0) x1,USB 2.0 x1,Type-C(USB2.0)   x1

USB Camera

≤1080P@30, MJPG

Audio Input

AirPlay/Miracast/Chromecast,   Windows/MAC, WMH, USB/BT SpeakPhone

Audio output

Jack, HDMI, Jack   + HDMI,  USB/BT SpeakPhone

Control connectors

3.5mm Phoenix   terminal/ RS232 interface

Number of window   simultaneous on screen

≤ 4+12(4 main windows+12 thumbnail windows)

Number of   simultaneous connections

≤ 16

Video Playback   Frame Rate

20-60 FPS

Latency

<100ms,Min 20ms

WIFI Data rate

Up to 1200Mbps

Wireless   transmission protocol

WIFI IEEE 802.11   b/g/n/ac

Frequency band

2.4 GHz & 5   GHz

WIFI Antenna

MIMO 2x2 and MIMO   1x1

WIFI Encryption

AES WPA PSK,   WPA2 PSK

Control method

Web GUI, Telnet,   RS232

Dimension (W x D   x H)

220 x 120 x 33 mm   ( Antenna not included )

Weight

950 g (TBD)

Operating   Temperature

-4° to +113 °   F  (-20° C  to    +45° C)

storage   Temperature

-4° to +140°   F  (-20° C  to    +60° C)

Relative   humidity

20%~ 85% RH(no condensation)

DC Power

12V / PoE

PoE standard

IEEE802.3af ( or    IEEE802.3AT TBD)

Power   Consumption

10W(MAX) (TBD)

Power adapter

AC100~240v   50/60Hz  12V/1.5A(TBD)

adapter with   four plug-in, US, Europe, UK, Australia
