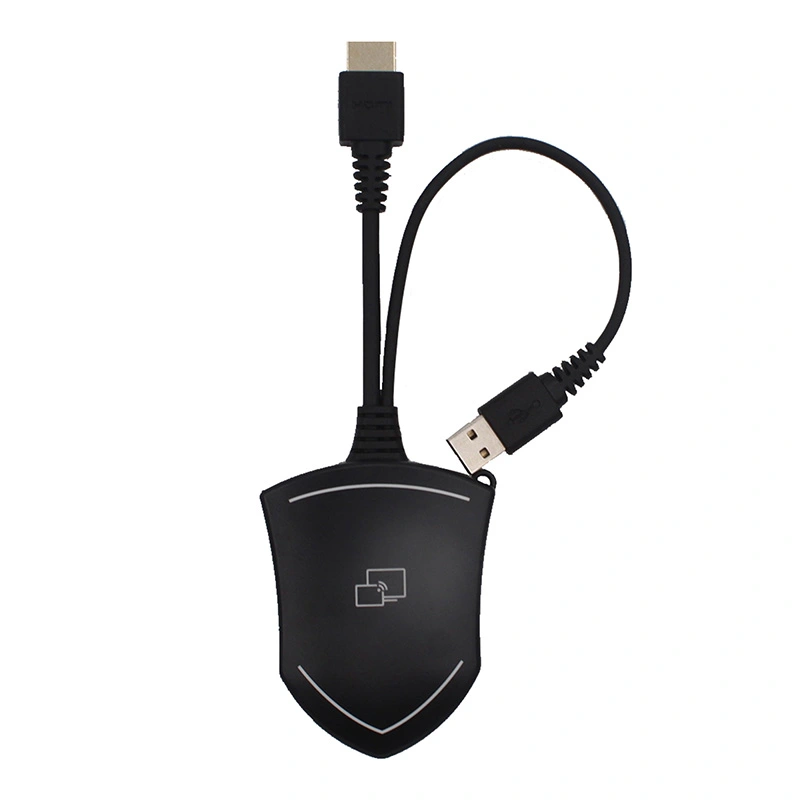

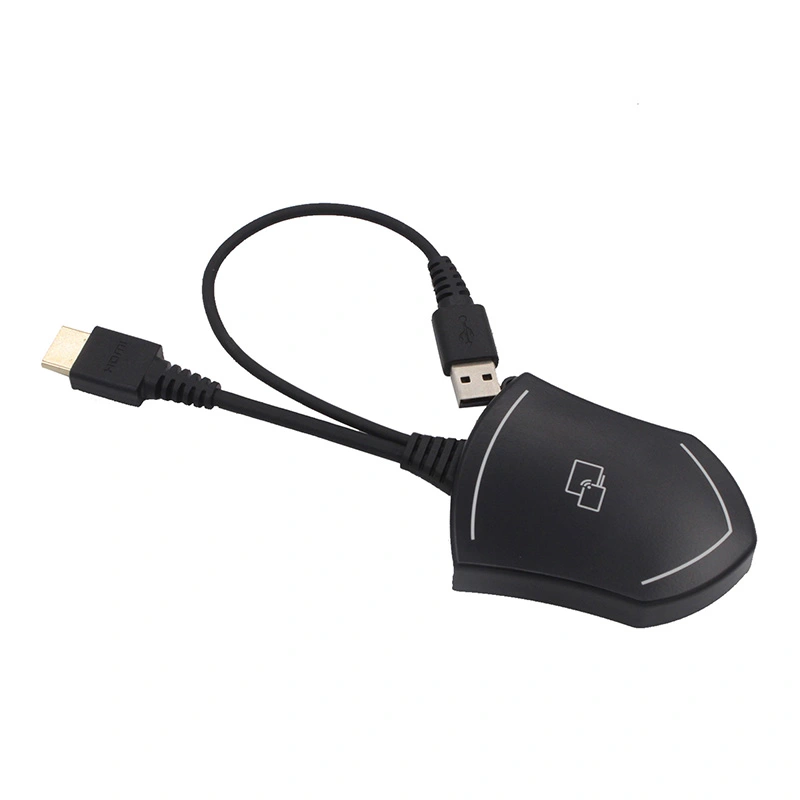

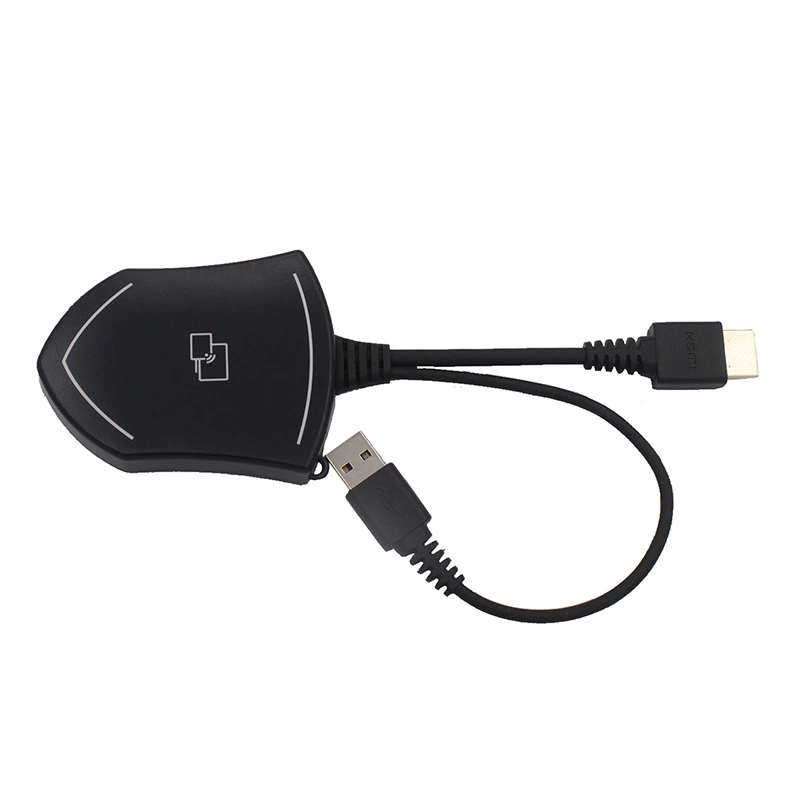

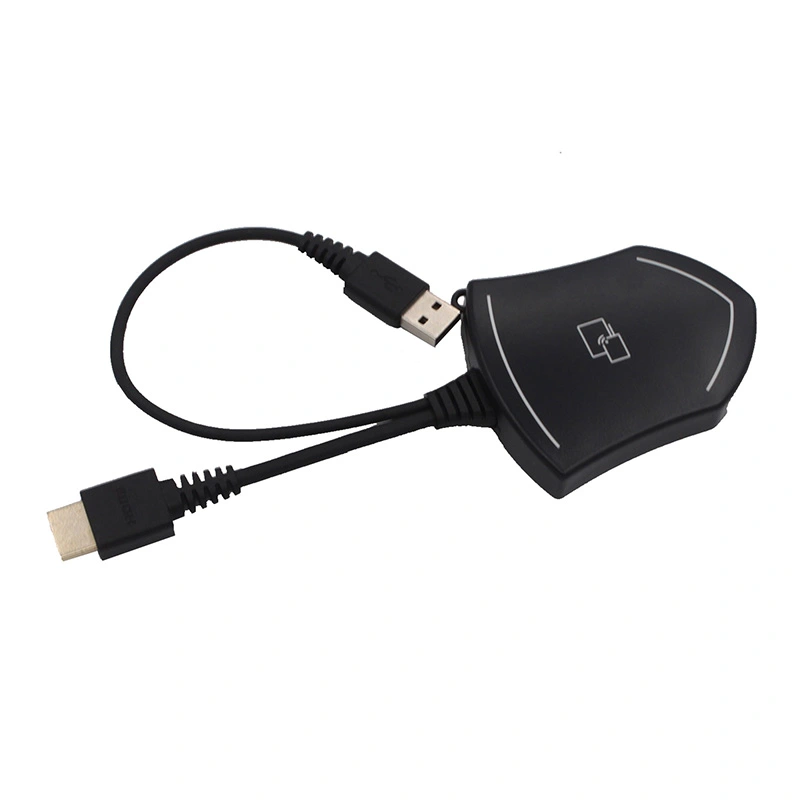

WMT3-H HDMI Dongle Transmitter

WMT3-H is a HDMI dongle that work compliantly with all of our wireless media bases, unlike other dongle in the market to start casting with button click, it provides a different user experience with touch and tap, with is more easy and efficient;  it doesn't require installation of any software or driver, what's more? neither it needs additional USB power cable to connect, which gives more convenience to use.

Description

WMT3-H Key Advantages


With HDMI interface

APP-free

Plug and play

Easy to use




Specifications


Specification

Supported   Formats


Video Input Formats

HDMI 1.4

HDCP

HDCP1.4

Video Input Resolution

VESA, maximum 2560x1440

Video input timing

1920x1080,1680x1050,   1600x900,1440x900,1400x1050,1366x768,1280x1024,1280x800,1280x720,1024x768,1920x1200,1600x1200,   2560x1440
  @24 25, 30, 50,60 HZ

Video Output Formats

1 x Wireless

Audio Input Formats

HDMI 2CH PCM

Audio Output Formats

WIFI 11b/g/n/ac

Inputs Connectors


USB Input

USB type A, USB 2.0

HDMI Input

1×HDMI type A 19P male connector

Wireless Specification


Wireless transmission protocol

WIFI IEEE 802.11 a/g/n/ac

WIFI Frequency   band

2.4 GHz & 5   GHz

WIFI Antenna

MIMO 2x2

WIFI Data rate

Up to 1200Mbps

Features


Video Capacity

Wireless Transmission 1080P@60Hz, 2560x1440 30Hz

Distance

Typical: 35m without obstacle between WMT3-H and WMS

Latency

100ms

Control


Button

Capacitive touch Key and vibration

Indicator

Green/Red/color back-lit LED indicator

Mechanical


Round Unit Dimensions
   (L x H x R)

80cm x 65cm x 1.3cm

HDMI cable11cmUSB cable21cm

Weight

~0.2lbs (~100g)

Surface finish

1~2mm plastic with matte black finish

Environment


Operating Temperature

-4° to +113 ° F    (-20° C  to  +45° C)

Storage Temperature

-4° to +140° F    (-20° C to  to  +60° C)

Relative humidity

20%~ 85% RHno condensation

Power


Power Input

USB Internal 5V

Power Consumption

2.5W (max.)
