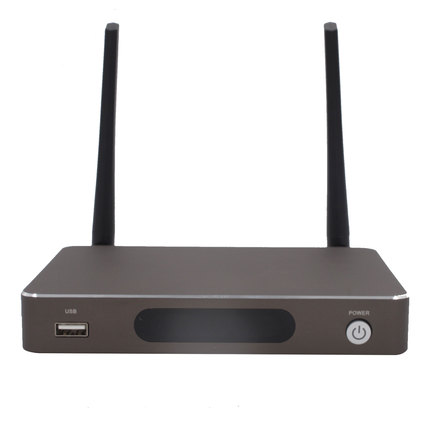

WMS-40 Wireless BYOD Content Sharing System

WMS-40 is a wireless presentation system, support 4 split screen simultaneously, aiming to replace the legacy Pro-AV switcher with not only the least cabling and cost, but also more powerful presentation and collaboration capabilities, it allows people to bring their own devices to share content anywhere they sit and also easily collaborate with others without any public contact, especially under post-pandemic environment, it helps conference or training went on safely as normal, with the least contact and required social distance.

Description


WMS-40 Key Advantages


Pure wireless presentation experience, bring your own device, no cable messy

Wireless content input up to 1080P, HDMI 2.0 output

Support native wireless mirroring protocols like Airplay, Miracast, Chromecast

Support plug-n-play HDMI/TYPE-C/U disk dongles for wireless connection

Support Android, MAC and Windows APP for wireless presentation

Support 4 split screen view

Support wireless touch back on interactive whiteboard/touch screen

Best-in-class data security with dual network and high standard encryption

PoE supported, saving PSU when connecting with PoE ethernet switch

Moderation mode support preview function

Support whiteboard, annotation

Customizable home screen page

Central management platform available




System Diagram







Specifications


Specification

HDMI output

1x HDMI 19-pin   female connector

Video Output   Resolution

3840x2160@60Hz,3840x2160@30Hz,   1920x1080@60Hz, 1280x720@60Hz

Format   Compliance

HDMI1.4/HDMI2.0

Video Capacity:

1080P @ ≤60Hz Airplay for IOS devices

1080P @ ≤60Hz "WirelessMedia" app

1080P @ ≤60Hz for HDMI  show-me button

1080P @ ≤60Hz for USB-C show-me button

1080P @ ≤30Hz for USB show-me button

HDCP

HDCP1.4/HDCP2.2

Analog Audio   Output

1x 3.5mm PC   audio female jack

LAN port

RJ45 x2:1000Mbps x1,100Mbps x1

USB interface

USB3.0 x1, USB   2.0 x1,Type-C(USB2.0 only) x1

Audio Input

AirPlay, Windows/MAC,   WMH

Audio output

Jack, HDMI, Jack   + HDMI

Control   connectors

3.5mm Phoenix   terminal/ RS232 interface

Number of window   simultaneous on screen

≤ 4+12(4 main windows+12 thumbnail windows)

Number of   simultaneous connections

≤ 16

Video Playback   Frame Rate

20-60 FPS

Latency

<100ms,Min 20ms

WIFI Data rate

Up to 1200Mbps

Wireless   transmission protocol

WIFI IEEE 802.11   b/g/n/ac

Frequency band

2.4 GHz & 5   GHz

WIFI Antenna

MIMO 2x2

WIFI Encryption

AES WPA PSK,   WPA2 PSK

Control method

Web GUI, Telnet,   RS232

Dimension (W x D   x H)

165mm x 100mm x   24.5mm(including antenna:   165mm x 205mm x 24.5 mm)

Weight

0.9lbs(400g)

Operating   Temperature

-4° to +113 °   F  (-20° C  to    +45° C)

storage   Temperature

-4° to +140°   F  (-20° C  to    +60° C)

Relative   humidity

20%~ 85% RH(no condensation)

DC Power

12V / PoE

PoE standard

IEEE802.3af

Power   Consumption

10W(MAX)

Power adapter

AC100~240v   50/60Hz  12V/1.5A

adapter with   four plug-in, US, Europe, UK, Australia
